Software for electrical and photovoltaic engineering

Diagrams for industrial automation in AutoCAD

CADelet Schemes is the AutoCAD application to produce diagrams of electrical systems in the field of industrial automation. The power of CADelet Schemi consists on the complete management of the diagram in order to obtain all the support work to the realization of the electrical panels. The package comes from the main CADelet Professional product.

AutoCAD 64-bit rel. 2018 to 2026 required New
Industrial automation Electrical CAD AutoCAD application

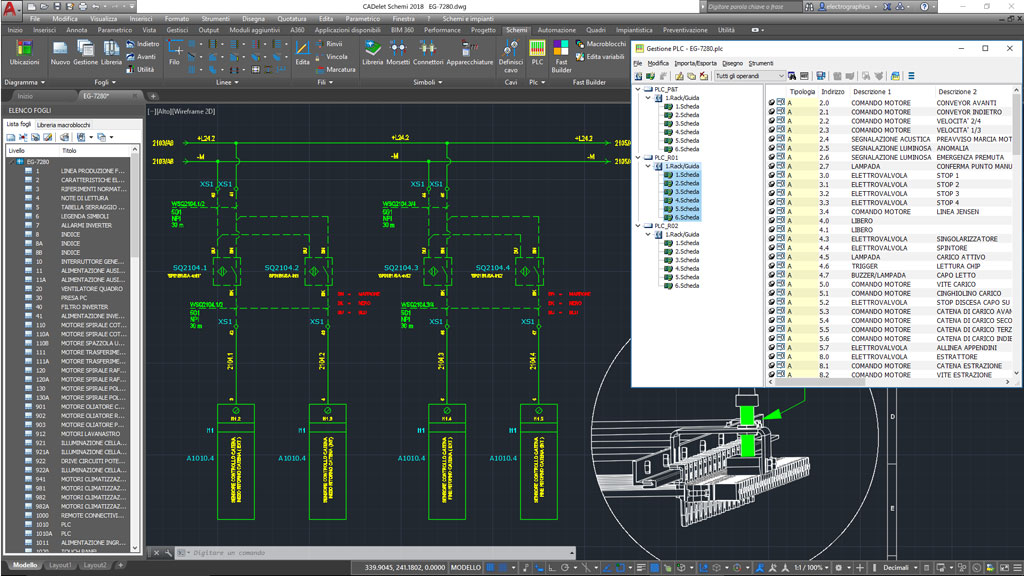

CADelet Schemi - Diagrams for industrial automation in AutoCAD
Watch the videos Download the brochure

Main features

The features of CADelet Schemi: each item opens the detailed description.

Basic functionalities
Saving and sharing data in EG Cloud
Fast Builder
Equipments
PLC
Cross reference
Interconnection diagram
Automatic wire numbering
Terminal boards and connectors
Loop diagram
Power flow analysis
Conduits and cables
Panel layout
Panel thermal test
Blocks diagram
Materials table

To compare CADelet Schemi with the other software, see the products comparison table.

What's new

The new features of CADelet Schemi, series by series.

System requirements

Minimum requirements to install and use CADelet Schemi.

  • Computer with 3 GHz o higher processor.
  • At least 8 GB RAM.
  • Hard disk with at least 10 GB free space.
  • Colour video and graphics board (SVGA or higher).
  • USB, mouse, printer or plotter.
  • Windows 10 (version 1809 or higher) or 11.
  • 64-bit AutoCAD version 2018-2025.

Integrations

Electro Graphics software that completes CADelet Schemi.

These Electro Graphics software products integrate with CADelet Schemi to complete the set of tools needed for professional electrical engineering.

Other electrical CAD

Other Electro Graphics solutions in the same field.

In addition to CADelet Schemi, other electrical CAD solutions are available: software that runs on Autodesk AutoCAD, or which includes Autodesk AutoCAD technology engine.
